Waveshare Industrial-Grade Isolated 2-Channel RS485 Hub, Rail-Mount Support, Wide Baud Rate Range, Expands 2-ch RS485 Sub Ports Via 1-ch RS485 Master Port, with Isolation and Signal Relay

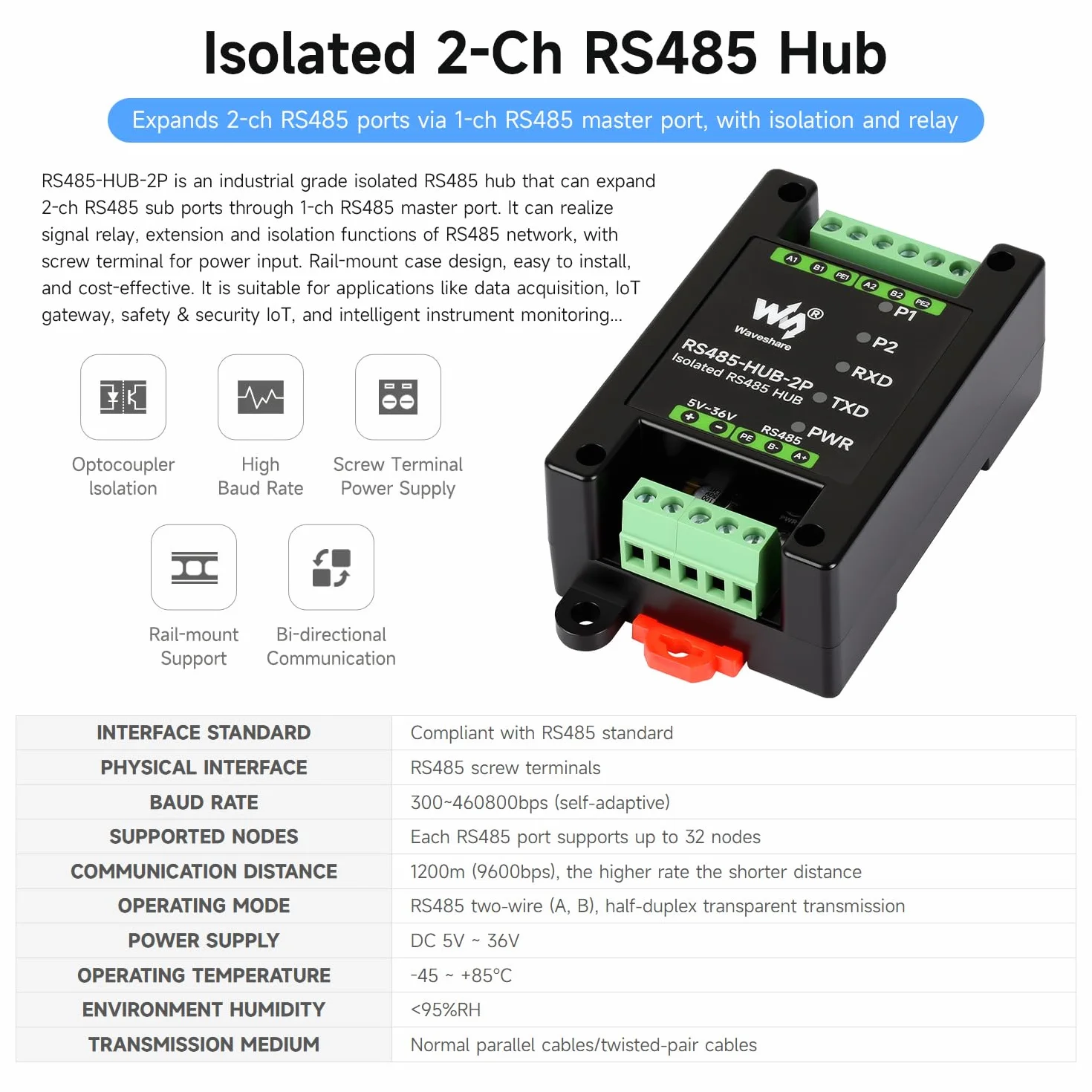

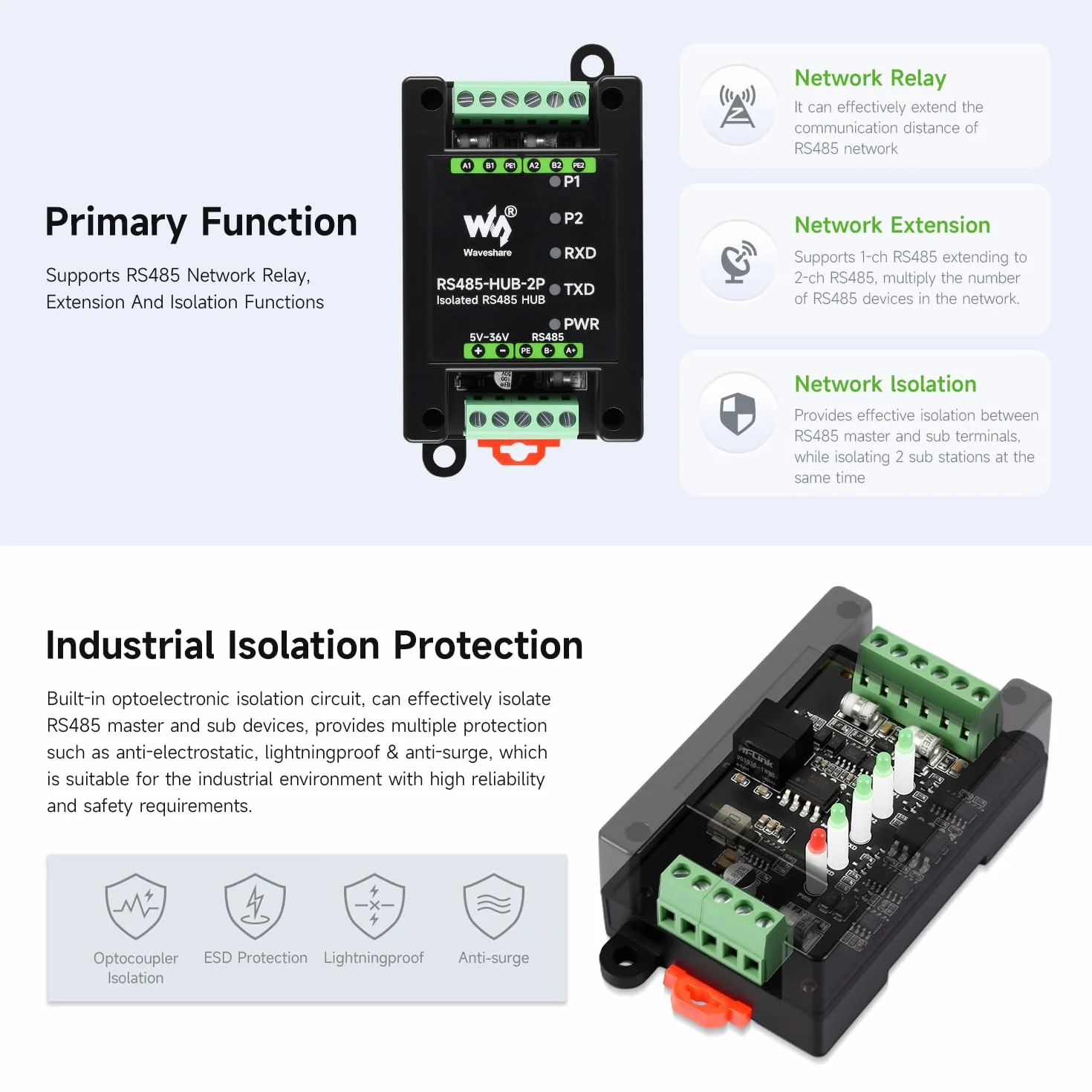

- Industrial-Grade RS485 Hub: The RS485-HUB-2P expands a single RS485 master port to 2 RS485 sub-ports, offering signal relay, extension, and isolation for robust RS485 network management.

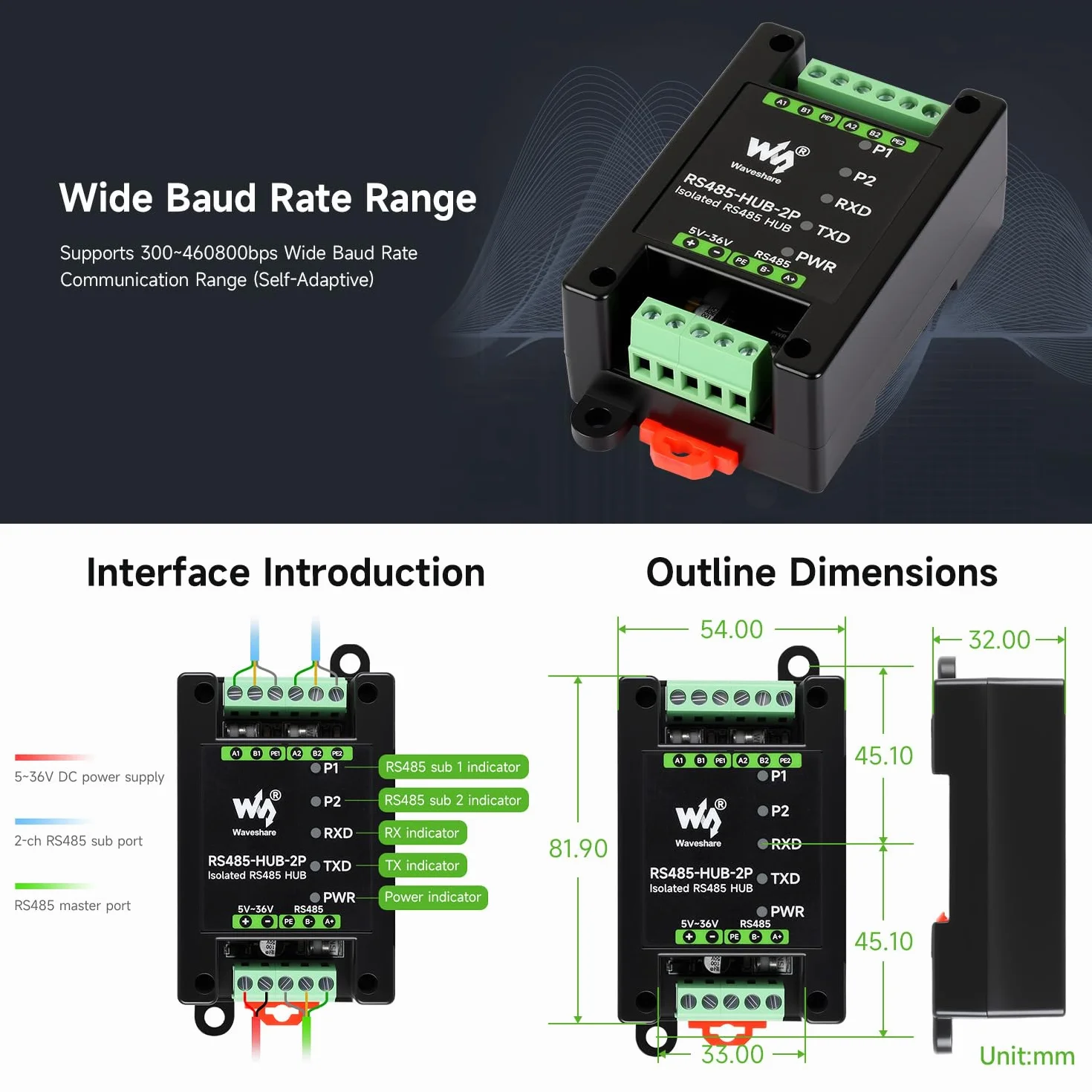

- Versatile Communication Support: Supports baud rates ranging from 300 to 460,800 bps with automatic adaptation, and each RS485 port can handle up to 32 nodes for scalable communication.
- Long-Distance Communication: Allows communication distances up to 1200 meters (at 9600 bps), with distance varying based on baud rate, making it ideal for extensive industrial networks.

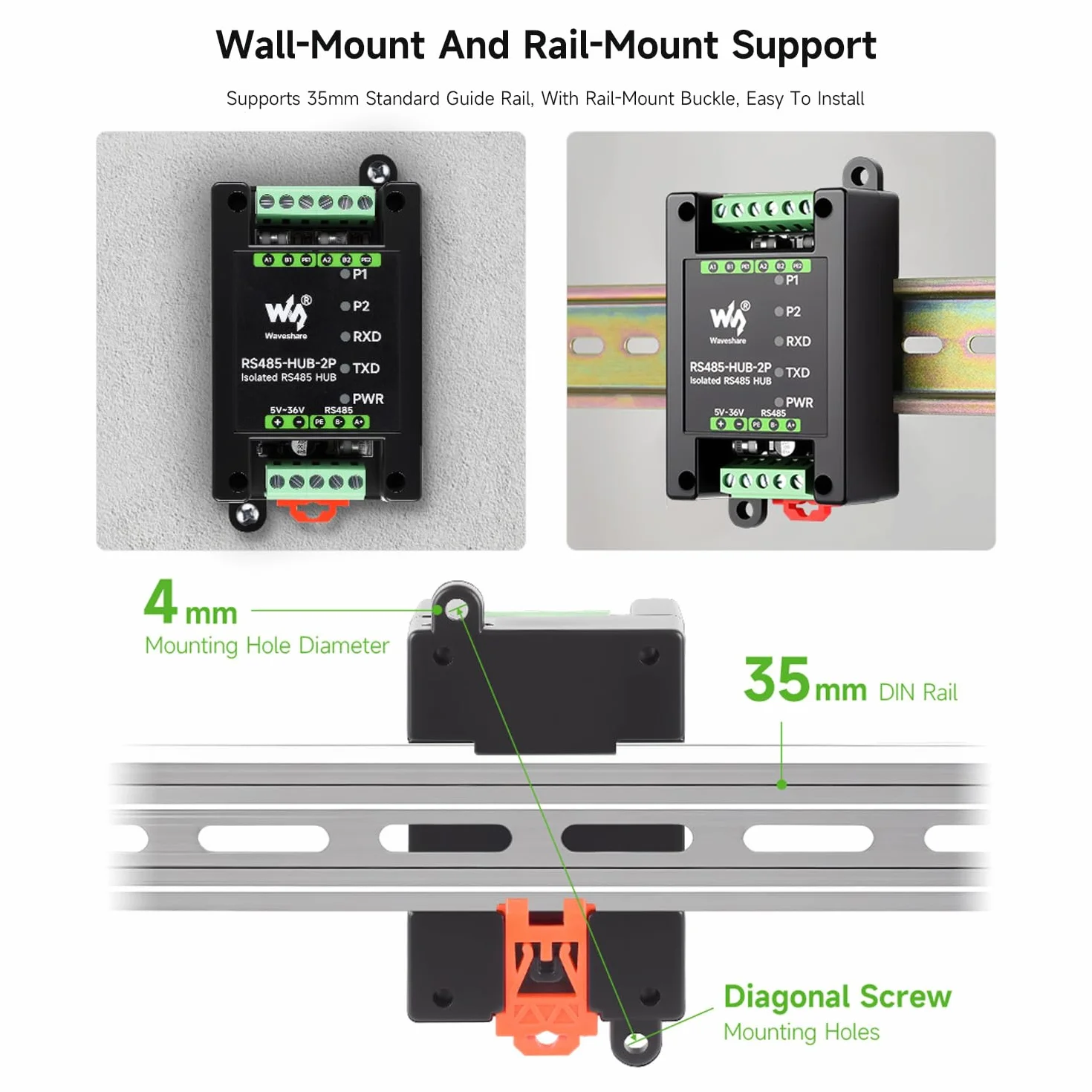

- Rail-Mountable & Easy Installation: Features a rail-mountable case design, offering simple installation and a cost-effective solution for industrial applications.

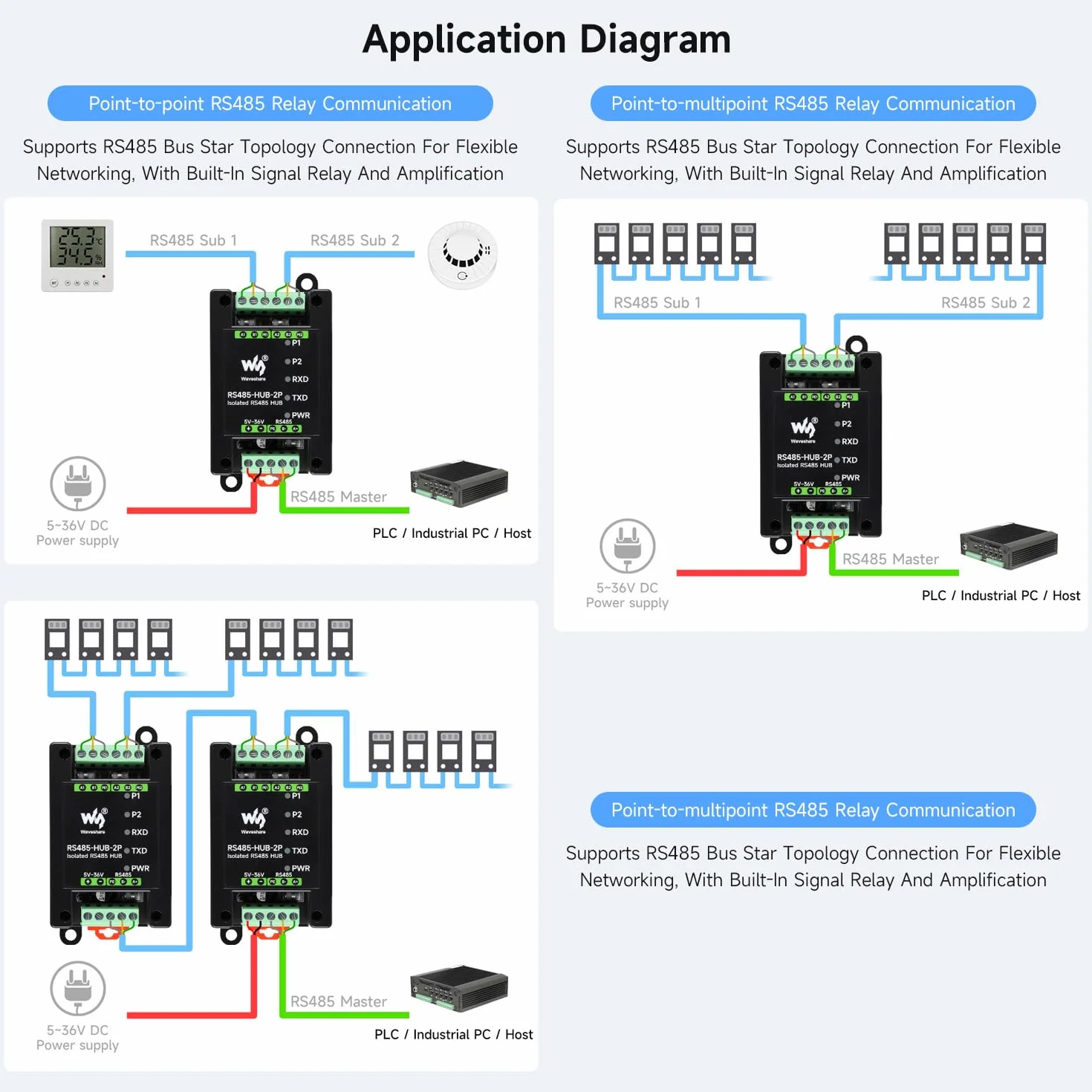

- Wide Application Range: Perfect for data acquisition, IoT gateways, security IoT, and intelligent instrument monitoring, with an operating temperature range of -45°C to +85°C and power supply options from DC 5V to 36V.
